Uitable for long narrow factory, 30% less floor area than turret type(Star Way Roto Equipment).

Linear shuttle + movable oven, 3-5 independent stationsfor cyclic operation.

Simultaneous heating/cooling/assembly at all stations, no idletime, high flexible production capacity.

Send Inquiry

Product Description

Product Features

Lined shuttle rotomolding machines feature multiple independent arms operating along a track-based shuttle system. Each arm can be individually controlled, enabling flexible access to identical or different heating and cooling stations. This design supports simultaneous production of products with varying cycle times, allowing loading/unloading on other arms while one is heating—eliminating downtime. Designed for large, heavy-duty products, it incorporates precise temperature control and rotating arm ventilation to ensure uniform wall thickness. Production continues during mold changes, balancing efficiency with flexibility.

The oven adopts a pure hot air circulation heating method, and the hot air can be directed to the mold at an intelligent adjustment speed to form deep cavity products.

The oven door adopts an anti-deformation structure with good sealing performance, the frequency conversion drive is fast and stable.

Adopt digital wireless communication technology, so equipment installation is flexible, electrical wiring is simplified, and remote access to machine software is supported.

Each arm is equipped with a single air line; dual air line is optional.

Large flow negative pressure fans, including air cooling and water cooling, are adopted to achieve fast cooling speed and high production efficiency.

Cart is controlled independently, with frequency conversion speed regulation system adopted to balance movement.

Burner Brand Options: We offer Italian Riello and German Weishaupt. Natural gas, liquefied gas, diesel, etc. can all be used.

PLC Control Solution: Modular PLC design with Ethernet communication ensures stable signal transmission without wiring faults.

HMI System: Features touchscreen + remote control to facilitate mold installation/demolding and boost efficiency.

VFD Motors: All motors (shaft rotation, thermal circulation fans, cart movement, oven door) are VFD-controlled for smooth operation.

Oven Tunnel Settings: Adjustable airflow volume and direction to suit distinct product requirements.

Heating/Cooling Functionality: Multi-stage heating/cooling settings, real-time temperature monitoring, and recipe storage capability.

Remote Maintenance Module: Enables mobile device monitoring, remote troubleshooting, and system upgrades (4G, Wi-Fi, wired).

Equipment Parameters

Model No	Floor Size

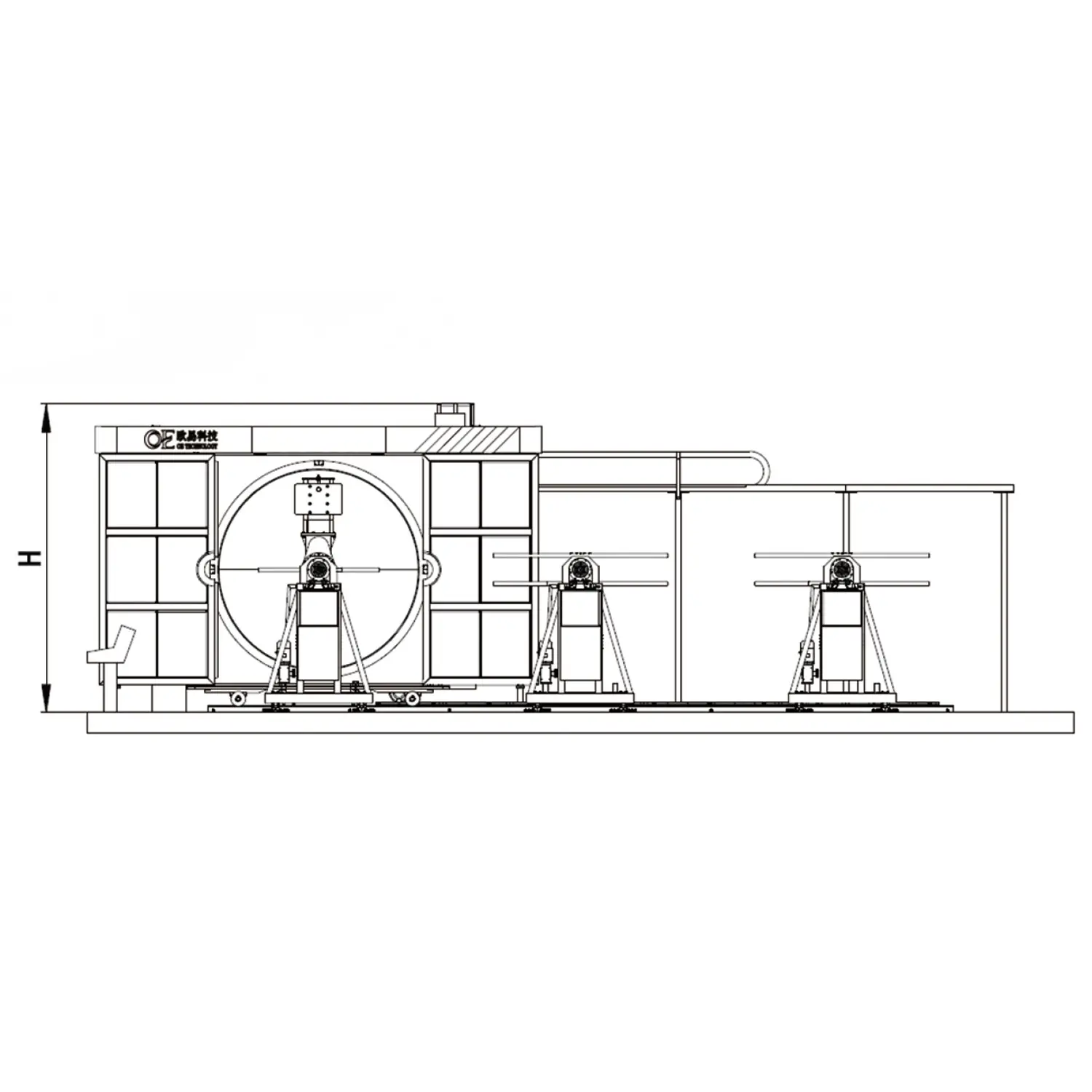

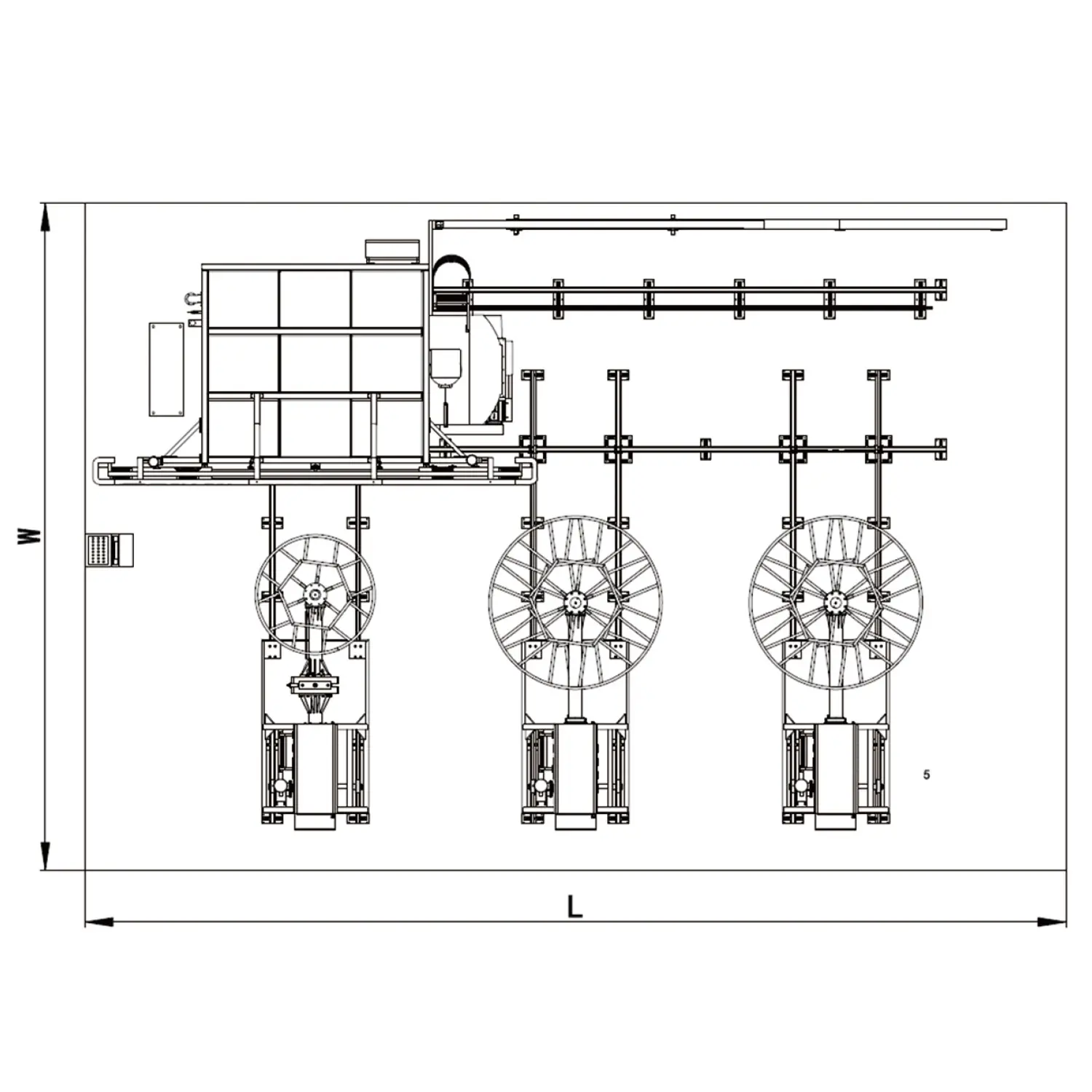

Model No	L(m)	W(m)	H(m)
S3-2500	13	9	4.1
S3-3000	15	10	4.6
S3-3500	17	1	5.1
S3-4000	19	12	5.6
S3-4500	21	13	6.1
S4-2500	18.5	10	4.1
S4-3000	20.5	11	4.6
S4-3500	22	12	5.1
S4-4000	24	13	5.6
S4-4500	26	14.5	6.1

Straight Arm Specifications

Specifications	A(mm)	B(mm)	C(mm)	Weight (Kg)
1600	R750	370	800	500
2000	R900	370	1350	800
2500	R1150	370	1700	1350
3000	R1400	450	2200	1600
3500	R1650	450	2700	1800
4000	R1900	450	3200	2000
4500	R2100	450	3700	2300
5000	R2350	700	4100	3000

L Arm Specifications

Specifications	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight (Kg)
1600	R750	800	1150	430	1100	300
2000	R900	1050	1600	610	1300	500
2500	R1150	1450	1900	780	1500	1000
3000	R1400	1950	2200	990	1800	1100
3500	R1650	2250	2600	1240	2200	1400
4000	R1900	2500	3200	1450	2300	1500
4500	R2100	2950	3400	1650	2600	1600
5000	R2350	3250	3800	1840	3300	2000

Super Energy-Saving Rotomolding Machine(oven)

C Arm Specifications

Specifications	A(mm)	B(mm)	C(mm)	Weight (Kg)
2500	1900	1640	1500	1000
3000	2200	1980	1800	1100
3500	2600	2480	2200	1400
4000	3000	2980	2500	1500
4500	3400	3480	2900	1600
5000	3800	3980	3300	2000

O Arm

U Arm

GET IN TOUCH WITH US

+86-13566388950
[email protected]

Frequently Asked Questions (FAQ)

What fuel types and burner brands are supported by the rotomolding machine?

We offer two premium burner brands: Italian Riello and German Weishaupt. The machine efficiently operates with natural gas, liquefied gas, and diesel fuel.

How does the lined shuttle rotomolding machine eliminate downtime?

The system utilizes multiple independent arms operating along a track. While one arm is heating inside the oven, other arms can perform loading or unloading procedures, allowing non-stop production.

What kind of control system is equipped on the machine?

It uses a modular PLC control solution with Ethernet communication paired with a touchscreen HMI system and remote control functionality for efficient, fault-free operations.

How is heating uniformity ensured for complex or deep cavity products?

The oven features a pure hot air circulation heating system capable of intelligent speed adjustments, directing air precisely to the mold for even wall thickness in deep cavity items.

Can equipment performance and status be monitored remotely?

Yes, the machine includes a Remote Terminal Maintenance Module allowing mobile device monitoring, system upgrades, and remote troubleshooting over 4G, Wi-Fi, or wired internet connections.

What arm configurations are available for different mold requirements?

We offer Straight arms, L arms, C arms, O arms, and U arms in various size and weight capacities to suit a wide variety of product dimensions.
