Buy Carousel rotomolding machine Manufacturers, Service

4-5 independent stations, full-process assembly lineoperation; independent control, parallel processes, shortercycle, higher capacity.

Independent cooling station, centralized heat treatment,better workshop environment.

Independent assembly station, fixed post for workers &tools, higher efficiency.

Suitable for products with similar molding cycle stages.

Send Inquiry

Product Description

Product Features

✔

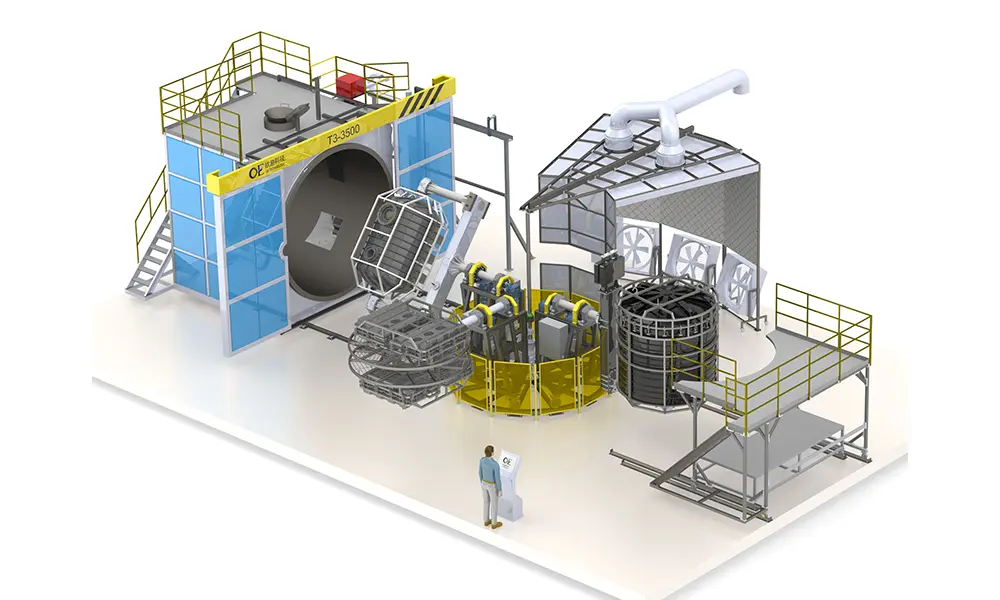

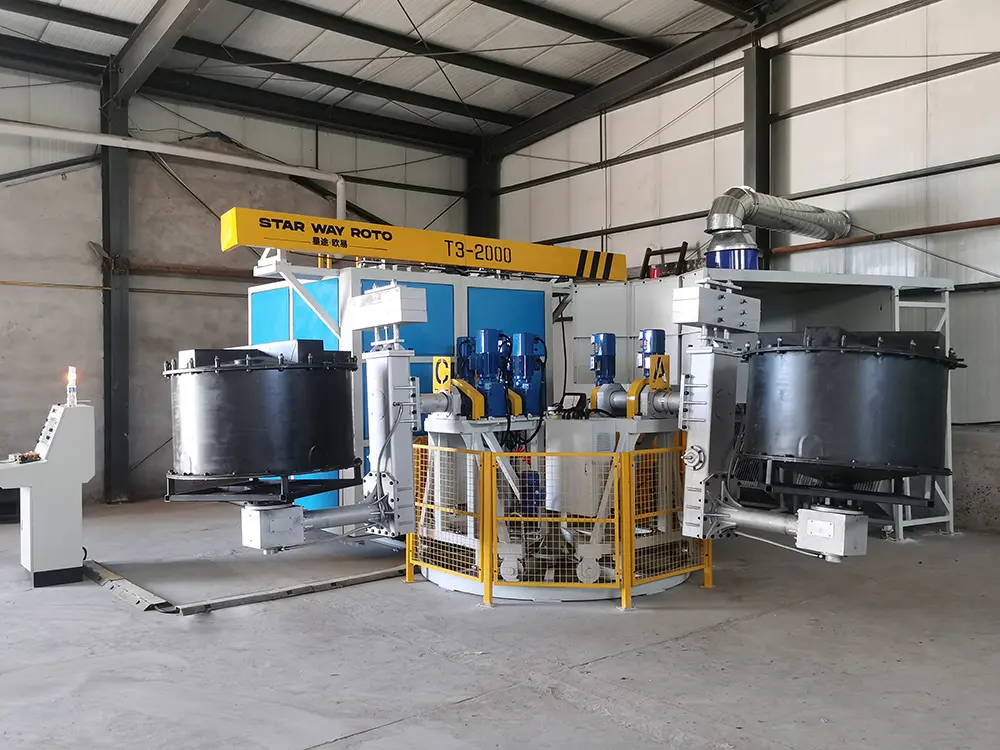

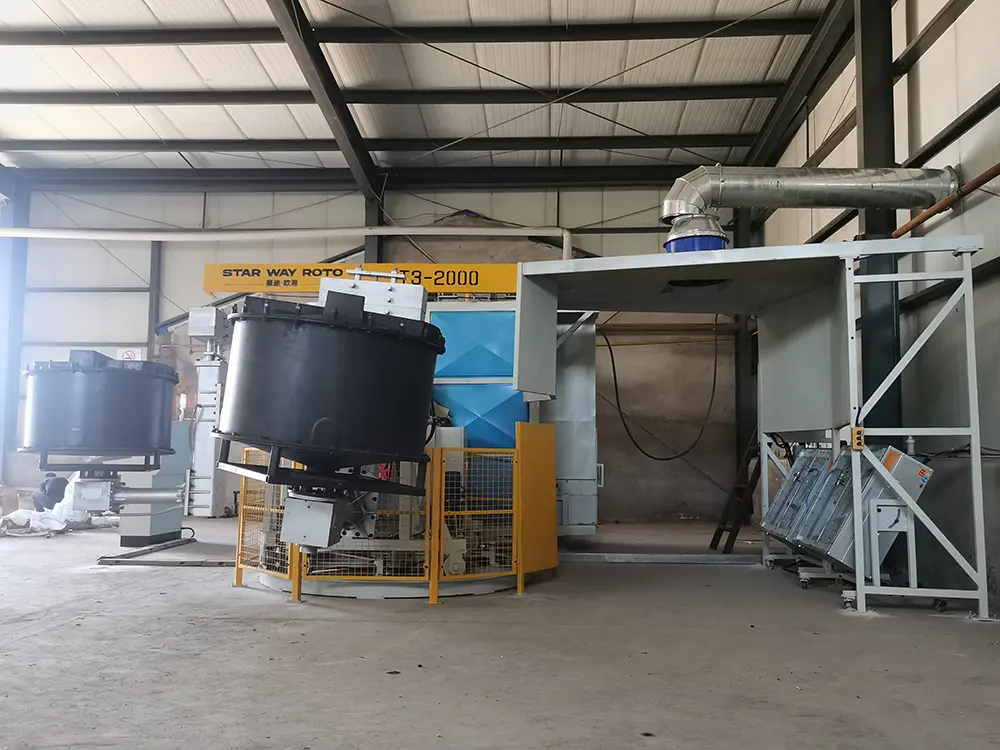

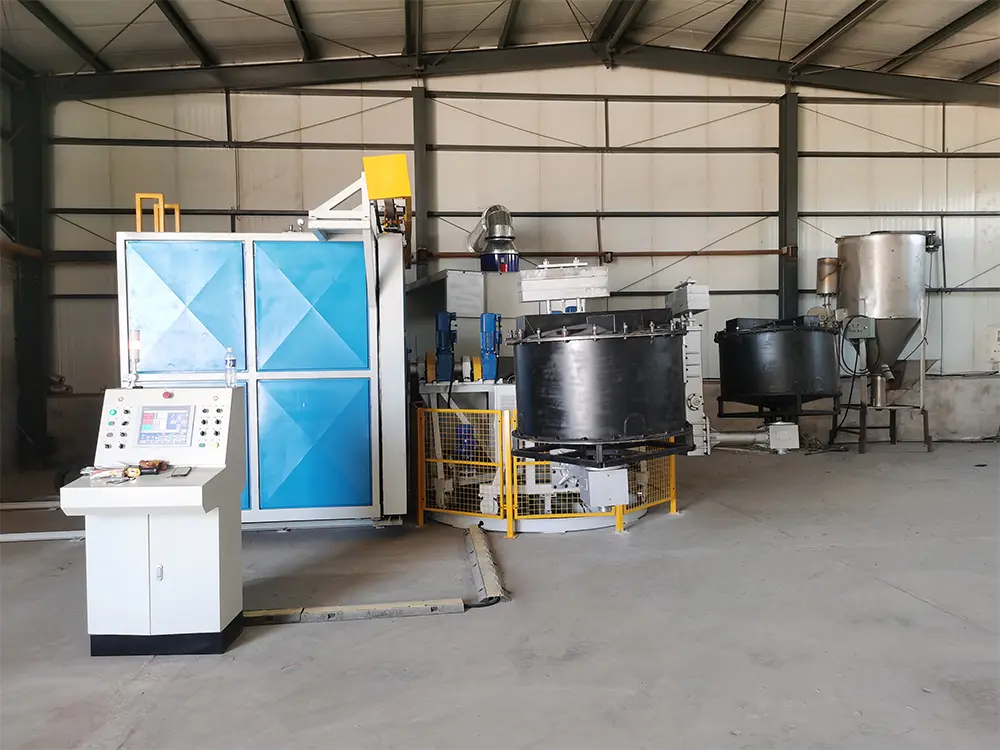

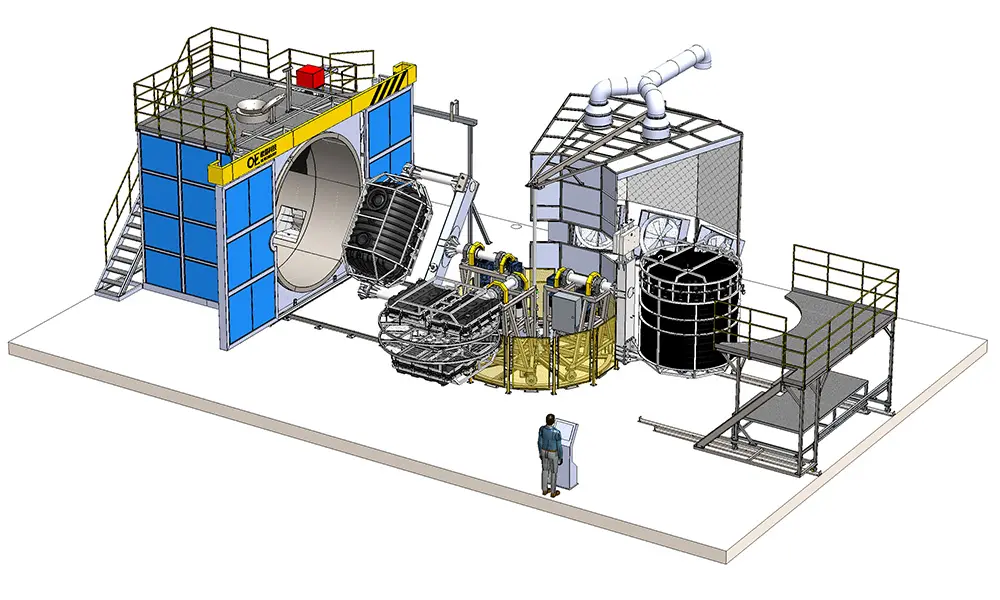

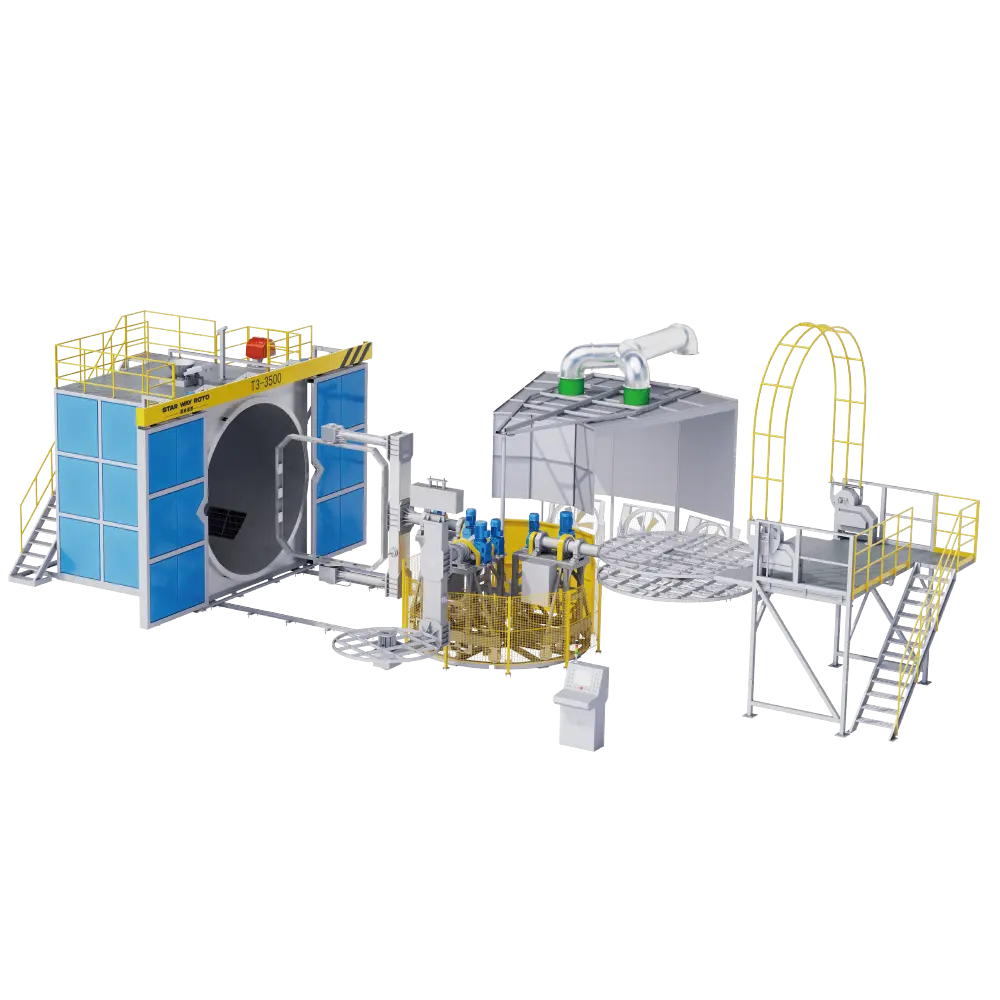

Carousel rotomolding machine is based on the core of tower type multi-station structure, usually set up 3-6 stations, can carry out the heating, cooling, demolding and other processes simultaneously, the mold cycle running without waiting, high production efficiency. It adopts hot air or infrared heating, with precise temperature control and independent temperature adjustment for each station, and it can also be equipped with an automatic system to reduce manual intervention, which is suitable for a wide range of hollow products from small toys to large tanks, and the energy consumption per unit is also relatively lower.

✔

Oven channel adopt the hot-air cycle method the hot-air spray to the mould directly, suit for molding deep-cavity plastic product.

✔

The oven door adopts patented anti-deformation structure with good sealing performance. Frequency conversion walking speed, good stability.

✔

Each arm is equipped with a single air line dual air line is optional.

✔

The cylindrical oven structure is designed with high space utilization rate, and the oven has a small area of heat absorption, which is energy-saving and environmentally friendly.

✔

Adopting digital wireless communication technology, equipment installation is flexible, wiring is simplified, and remote troubleshooting can be realized.

✔

Cart independent control, using frequency conversion speed regulation, smooth movement.

✔

Hot air exhaust device can reduce the temperature of the production workshop and improve the production environment.

✔

Large flow negative pressure fans, including air cooling and water cooling, are adopted to achieve fast cooling speed and high production efficiency.

✔

The fully enclosed head and arm have undergone FEA simulation with high transmission accuracy, long lifetime and good lubrication system.

✔

Up to six working stations, from 1000 to 5000 mm (40 to 200) swing diameter.

✔

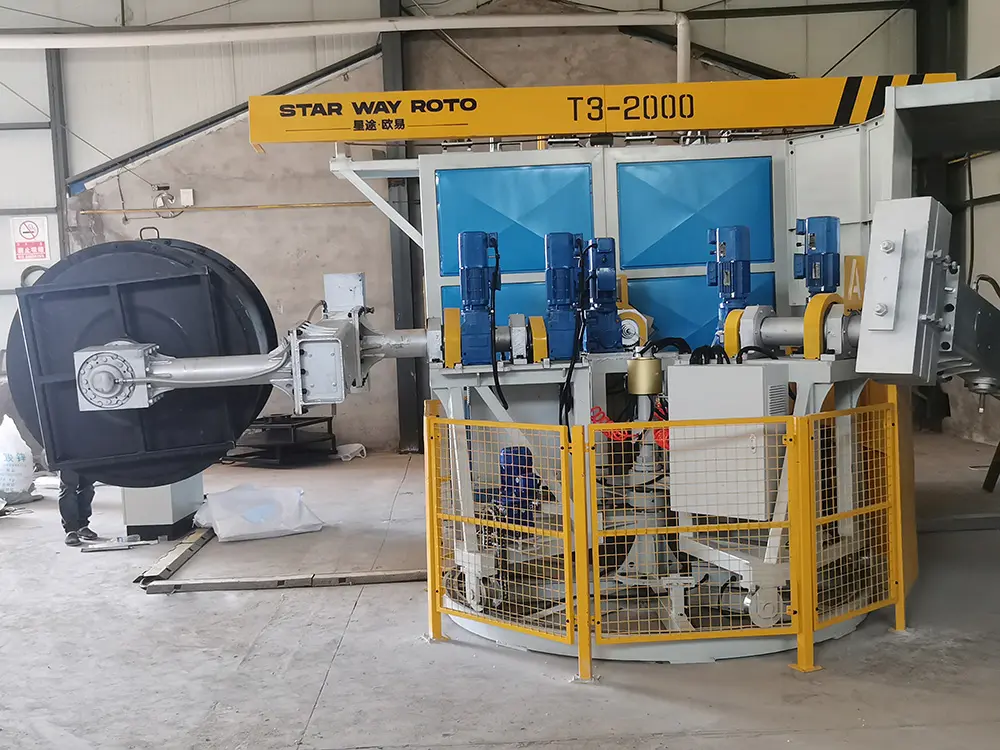

There are 3 or 4 rotational arms carrying molds that move together in a cycle.

✔

Molding temperature and rotational speed can be changed for each rotational arm (two shafts).

✔

Oven after FEA heat utilization simulation analysis, high heat utilization rate, fast heating speed, energy saving and environmental protection.

✔

Suitable for simultaneous production of products with close timing of each molding stage.

✔

We offer two brands of burners: Italian Riello and German Weishaupt. Customers can choose according to their actual needs. Natural gas, liquefied gas, diesel, etc. can all be used on the machine.

✔

PLC Control Solution: Modular PLC design with Ethernet communication ensures stable signal transmission, eliminating issues caused by wiring faults; HMI system featuring touchscreen + remote control facilitates mold installation/demolding, boosting production efficiency; All motors—including major/minor shaft rotation, thermal circulation fans, cart movement, and oven door operation—are VFD-controlled (smooth operation, high efficiency).

✔

Oven Tunnel Settings: Adjustable airflow volume/direction (different product volumes require distinct airflow control).

✔

Heating/Cooling Functionality: Multi-stage heating and cooling settings; real-time temperature monitoring; recipe storage capability to save and recall specific product process parameters.

✔

Remote Terminal Maintenance Module: Enables mobile device monitoring of equipment status, remote troubleshooting, and system upgrades (supports all network connections, 4G, Wi-Fi, and wired connections).

Equipment Parameters

Carousel rotomolding machine:

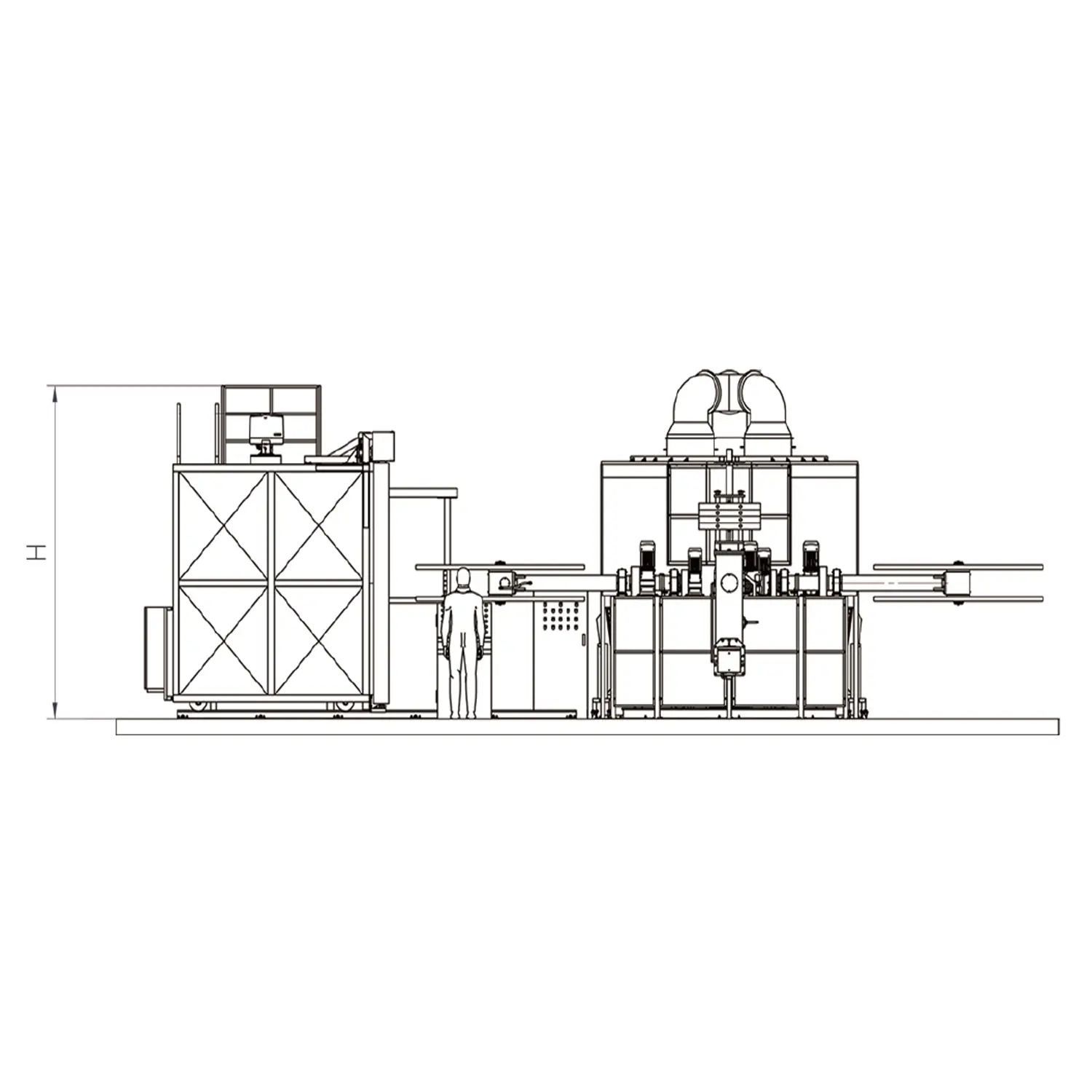

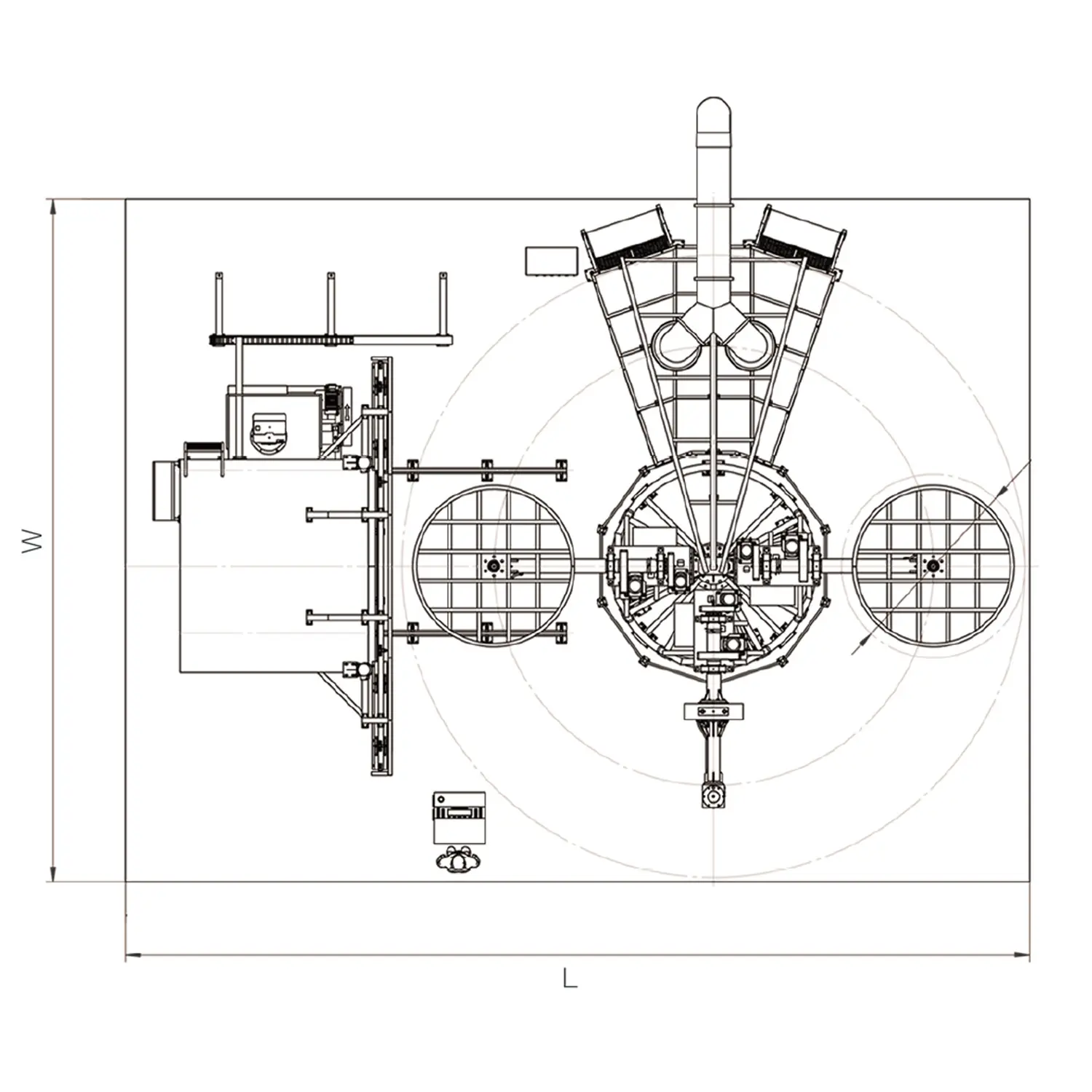

Model No	Floor Size
Model No	L(m)	W(m)	H(m)
T3-1600	8.5	7	3.1
T3-2000	10	8	3.8
T3-2500	13.5	9	4.5
T3-3000	16	10.5	5
T3-3500	17.5	11.5	5.5
T3-4000	19.5	13.5	6
T3-4500	21.5	15.5	6.5
T3-5000	23.5	17.5	7

T4-2500	14	9.5	4.5
T4-3000	16.5	11	5
T4-3500	18	13	5.5
T4-4000	20	15	6
T4-4500	22	17	6.5
T4-5000	24	19	7

Straight arm:

Specifications	A(mm)	B(mm)	C(mm)	Weight (Kg)
1600	R750	370	800	500
2000	R900	370	1350	800
2500	R1150	370	1700	1350
3000	R1400	450	2200	1600
3500	R1650	450	2700	1800
4000	R1900	450	3200	2000
4500	R2100	450	3700	2300
5000	R2350	700	4100	3000

L arm:

Specifications	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight (Kg)
1600	R750	800	1150	430	1100	300
2000	R900	1050	1600	610	1300	500
2500	R1150	1450	1900	780	1500	1000
3000	R1400	1950	2200	990	1800	1100
3500	R1650	2250	2600	1240	2200	1400
4000	R1900	2500	3200	1450	2300	1500
4500	R2100	2950	3400	1650	2600	1600
5000	R2350	3250	3800	1840	3300	2000

Super Energy-Saving Rotomolding Machine(oven)

C arm:

Specifications	A(mm)	B(mm)	C(mm)	Weight (Kg)
2500	1900	1640	1500	1000
3000	2200	1980	1800	1100
3500	2600	2480	2200	1400
4000	3000	2980	2500	1500
4500	3400	3480	2900	1600
5000	3800	3980	3300	2000

O arm:

U arm:

GET IN TOUCH WITH US

+86-13566388950
[email protected]

Product Album

Frequently Asked Questions (FAQ)

Q1: How many working stations does the Carousel Rotomolding Machine support?

The Carousel rotomolding machine features a tower-type multi-station design, typically configured with 3 to 6 working stations for continuous heating, cooling, and demolding processes without wait times.

Q2: What heating fuel options and burner brands are compatible with the machine?

We offer top-tier burner brands including Italian Riello and German Weishaupt. The machine supports multiple fuel sources such as natural gas, liquefied gas (LPG), and diesel based on customer requirements.

Q3: Which arm configurations are available for different product dimensions?

We supply standard and customized arm options including Straight arm, L arm, C arm, O arm, and U arm to accommodate various mold sizes and complex product structures.

Q4: How does the PLC system enhance control and operational stability?

The system incorporates a modular PLC design with Ethernet communication, touchscreen HMI, wireless remote controls, and full VFD motor control for main/minor shaft rotations, airflow, and cart movements.

Q5: Is remote maintenance and troubleshooting supported?

Yes, our machines feature a Remote Terminal Maintenance Module supporting 4G, Wi-Fi, and wired connections for real-time mobile device monitoring, remote diagnosis, and firmware upgrades.
