Product Overview

The PPMF Series Grinding Disc Plastic Pulverizer accepts disc diameters from 400 to 800 mm and is purpose-built for high-speed, precision pulverizing of PE, PP, EVA and other medium-hard, impact-resistant and brittle plastics. The main shaft is machined on a high-speed precision grinder, the inner chamber is lined with wear-resistant liners, and the rotating material is fed vertically through the centre of a fixed grinding disc to meet a concentric high-speed rotating disc. Centrifugal force continuously carries material through the grinding zone, and the resulting powder is collected by an integrated blower and cyclone separation system for a continuous, dust-free process.

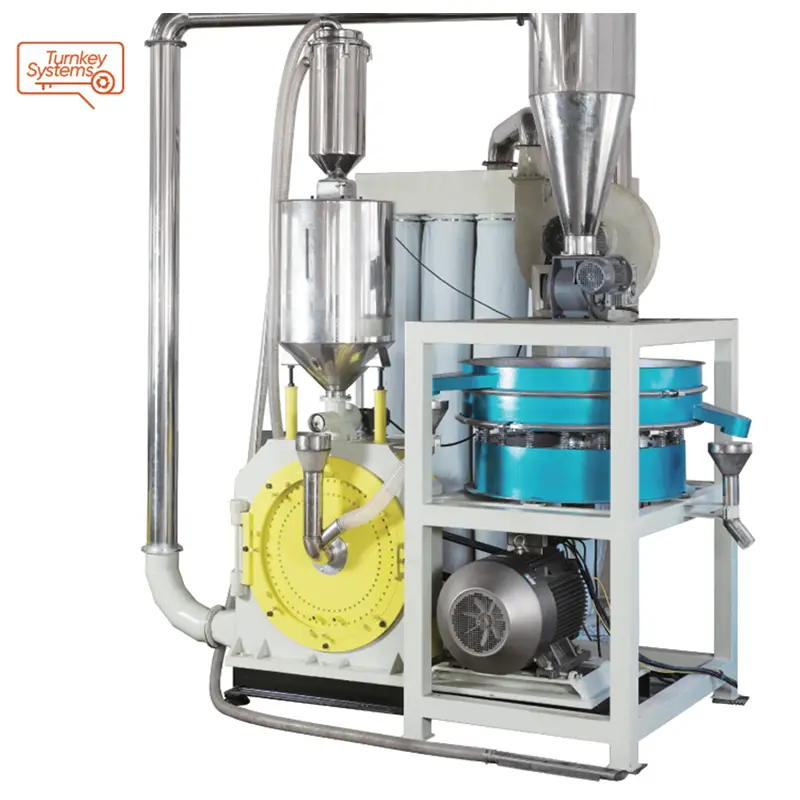

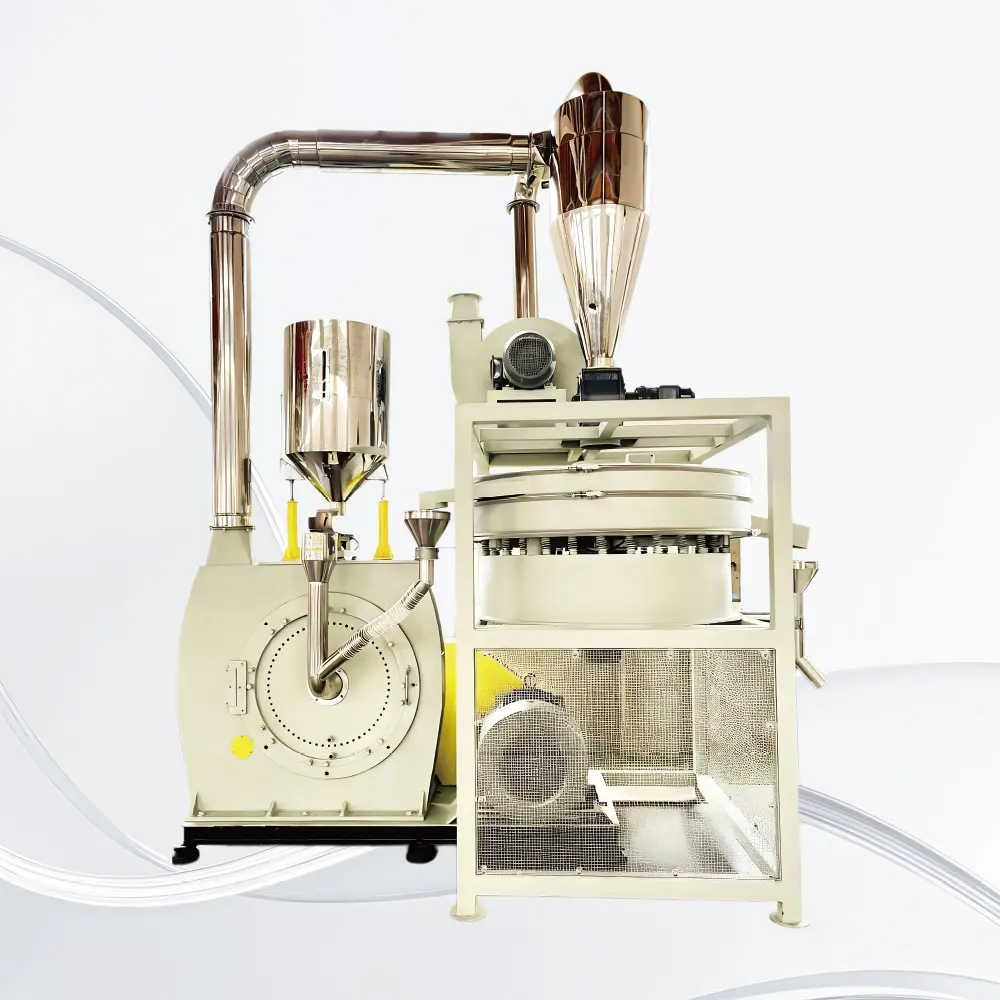

The standard machine is built from a drive motor, a disc-type grinding assembly, an inlet blower, a vibrating sieve and a dust removal system. Depending on the application, the PPMF series can be supplied as an integrated grinding-disc configuration or as separate grinding sections, and can be combined with vacuum loaders, screw conveyors, metal separators, magnetic grilles, chillers, pulse-jet dust collectors, and weighing/packaging machines to build a complete pulverizing line.

Four Core Advantages

✓ Automation

Fully automatic feeding, discharging and sorting in one integrated workflow.

✓ Higher Efficiency

A single drive motor delivers high-efficiency grinding and pulverizing, dramatically cutting cycle time.

✓ Cost Saving

Wear-resistant grinding disc lasts 2× longer than ordinary discs, lowering long-term operating cost.

✓ Smart Integration

Connects seamlessly with vacuum loaders, magnetic separation, dust collection and weighing / packaging for a complete smart line.

Performance Features

FEATURE New-generation grinding disc delivers better quality, stronger wear resistance, and twice the service life of an ordinary disc.
FEATURE High-speed professional bearings paired with a single drive motor ensure efficient grinding and pulverizing, eliminating the cost and complexity of multi-motor systems.
FEATURE Easy maintenance — the machine can be cleaned and serviced simply by opening the access door.
FEATURE Fully sealed pulverizing process with zero dust leakage, suitable for clean-room and shop-floor production.
FEATURE Fully automatic operation: automatic feeding, automatic discharging, and automatic sorting reduce labour and keep production continuous.
FEATURE Easy grinding-gap adjustment using a feeler gauge and adjusting bolts to fine-tune output for different material hardness and particle size requirements.
FEATURE Water + Air dual cooling prevents overheating of the main shaft and bearings, supporting long continuous duty cycles.
FEATURE Premium-brand components: SKF bearings, Siemens motor and other well-known brand parts ensure stability, low failure rate and minimal downtime for spare-part replacement.
FEATURE Highly configurable: modular options are available to match customer budget and processing requirements, from small workshops to large production lines.

Core Component Details

Fig. 2a Grinding Disc (Top View) High-strength alloy disc: precision surface texture ensures uniform grinding; central cross reinforcement increases rigidity.

Fig. 2b Grinding Disc Tooth Surface Fine-tooth grinding surface: enlarges the contact area, boosting grinding efficiency and output uniformity.

Fig. 2c Wear-Resistant Alloy Blades Replaceable alloy cutters: manufactured from high-hardness wear-resistant steel for long life and easy replacement.

Core Technical Specifications

Specifications for the three main PPMF series models. Customised configurations are available on request.

Parameter / Model	Unit	MYMF-500	MF-600	MYMF-800
Disc Diameter	mm	500	600	800
Dimensions (L×W×H)	mm	2900×2900×3900	3000×3000×4000	3200×3100×4000
Main Motor Power	kW	45–55	55–75	75–90
Blower Power	kW	5.5	7.5	11
Vibration Motor	kW	1.1	1.5	1.5
Feeder Motor	kW	0.75	1.5	2.2
Throughput	kg/h	100–500	150–800	200–1200
Cooling Method	—	Water / Air	Water / Air	Water / Air
Output Fineness	mesh	20–120	20–120	20–120

* The above specifications are for reference. Final selection can be optimised based on material characteristics, target throughput and site conditions. OEM / ODM services are available.

Typical Applications

● Pulverizing and recycling of PE / PP / EVA thermoplastic scrap, injection-moulded parts and blow-moulded parts;
● Fine grinding of waste plastic films, woven bags, pipes and sheets;
● Raw-material fine grinding for plastic compounding, filler masterbatch and colour masterbatch production;
● Recycling of rotational-moulding flash and trial-mould material;
● On-site closed-loop pulverizing in injection, blow-moulding and extrusion production lines.

Optional Equipment & Accessories

● Converter / vacuum loader / screw conveyor — for automatic and metered feeding;
● Magnetic grille / metal separator — to remove metallic contaminants and protect the disc and blades;
● Chiller — stabilises cooling-water temperature and improves water-cooling efficiency;
● Pulse-jet dust collector — captures fugitive dust and keeps the workshop clean;
● Weighing and packaging machine — for automatic metering and bagging of finished powder.

Service & Support

● One-year warranty on the complete machine; original factory warranty on key electrical and mechanical components;
● On-site installation, commissioning, operator training and process optimisation guidance;
● 7 × 24 remote technical support, with critical spare parts shipped within 48 hours;
● Complete turnkey pulverizing line design tailored to your material, throughput and site conditions.

📞 Request a tailored quote and proposal | Contact us today for the latest catalogue and on-site video references.

StarWay Roto — your trusted partner in plastic processing equipment.

Frequently Asked Questions (FAQ)

Q1: What materials can the PPMF Series Plastic Pulverizer process?

The PPMF series is purpose-built for high-speed, precision pulverizing of PE, PP, EVA, and other medium-hard, impact-resistant, and brittle thermoplastics, as well as recycled scrap, films, and rotational-moulding materials.

Q2: How do I adjust the output powder mesh size?

The output fineness (ranging from 20 to 120 mesh) is easily adjusted by modifying the grinding gap between the discs using a standard feeler gauge and adjusting bolts according to your target material size.

Q3: How does the cooling system prevent heat degradation?

The machine uses a dual Water + Air cooling system. This effectively dissipates heat generated during high-speed grinding, preventing heat-sensitive plastics from melting or degrading during continuous operation.

Q4: What is the expected service life of the grinding discs?

Our new-generation grinding discs are manufactured from high-strength wear-resistant alloys, delivering up to twice the service life compared to conventional discs, significantly reducing long-term maintenance costs.

Q5: Is the pulverizing operation dust-free?

Yes, the PPMF pulverizer operates in a fully sealed environment integrated with a high-efficiency blower and cyclone separation system (with optional pulse-jet dust collection) to ensure zero dust leakage on the shop floor.
